小米智能摄像机连接Centos8搭建的SMB服务NAS存储

一、前言

    偶然发现小米智能摄像头可以将视频文件传输的到NAS服务器上，因为本地SD卡存储时常有限，所以将录像上传至服务器，服务器端是CentOS Linux release 8.5.2111，部署了SBM服务，将1T数据盘挂载到/data目录，后期将所有视频文件上传至该路径下。

二、部署服务器服务

1、配置/data权限、配置hostname（配置smb服务之前挂载好存储数据的硬盘，这里我的存储路径为/data）
chmod 777 -R /data
hostnamectl set-hostname MiNAS --static

2、安装smb服务端
yum install samba

3、编辑配置文件 vim /etc/samba/smb.conf
[global]下将workgroup工作组设置为WORKGROUP
[global]下添加"server min protocol = NT1"，因为小米摄像头支支持SMBv1协议。
#在文件最后添加配置
[Data]
path = /data
valid users = lin
force user = lin
force group = MiNAS
public = yes
writable = yes
available = yes
browseable = yes

配置文件内容如下：

[root@MiNAS ~]# cat /etc/samba/smb.conf
# See smb.conf.example for a more detailed config file or
# read the smb.conf manpage.
# Run 'testparm' to verify the config is correct after
# you modified it.

[global]
	workgroup = WORKGROUP
	server min protocol = NT1
	security = user
	#netbios name = MiNas

	passdb backend = tdbsam

	printing = cups
	printcap name = cups
	load printers = yes
	cups options = raw

[homes]
	comment = Home Directories
	valid users = %S, %D%w%S
	browseable = No
	read only = No
	inherit acls = Yes

[printers]
	comment = All Printers
	path = /var/tmp
	printable = Yes
	create mask = 0600
	browseable = No

[print$]
	comment = Printer Drivers
	path = /var/lib/samba/drivers
	write list = @printadmin root
	force group = @printadmin
	create mask = 0664
	directory mask = 0775

[Data]
    	path = /data
    	valid users = lin
    	force user = lin
    	force group = MiNAS
    	public = yes
    	writable = yes
    	available = yes
    	browseable = yes

4、创建用户组和用户
groupadd MiNAS
useradd lin -G MiNAS -s /sbin/nologin

5、设置smb用户密码
smbpasswd -a lin

6、启动服务并设置开机自启
systemctl enable smb.service --now
systemctl enable nmb.service --now

7、放行SMB防火墙流量
firewall-cmd --zone=public --add-port=139/tcp --permanent
firewall-cmd --zone=public --add-port=445/tcp --permanent
firewall-cmd --zone=public --add-port=137/udp --permanent
firewall-cmd --zone=public --add-port=138/udp --permanent
firewall-cmd --reload

三、摄像头中添加NAS存储

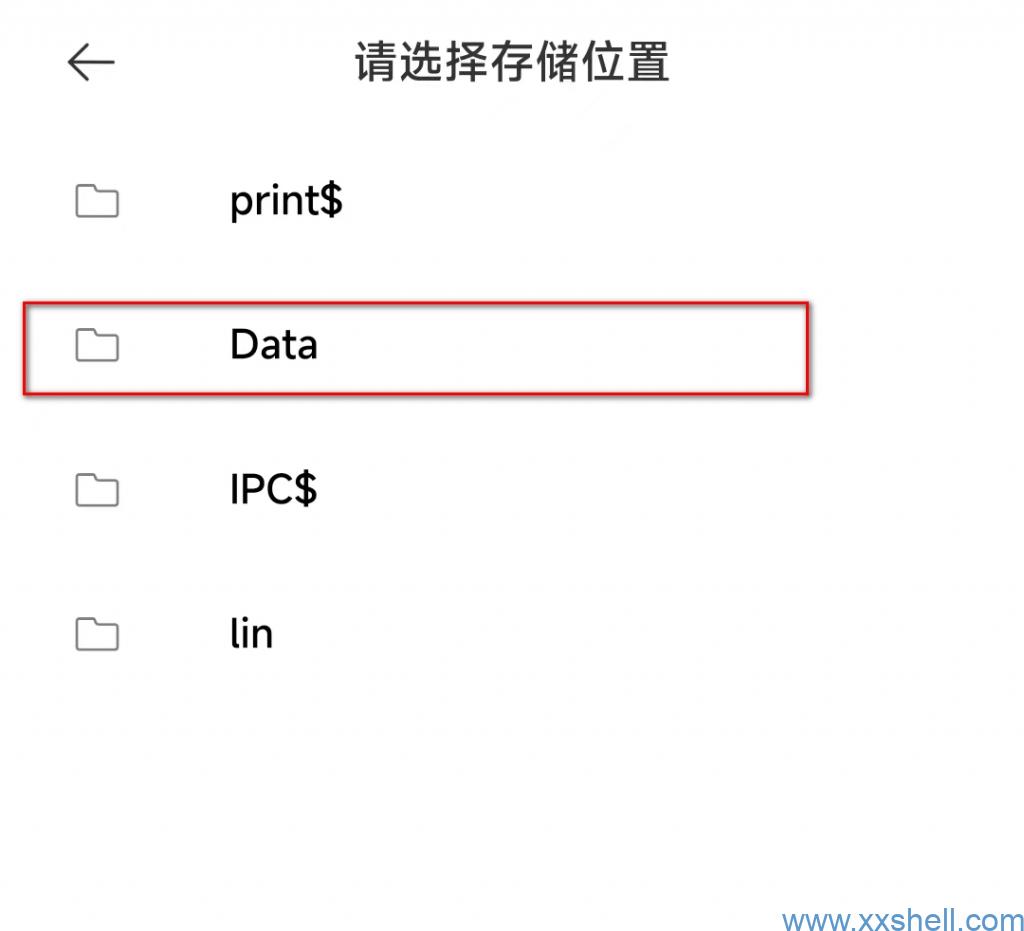

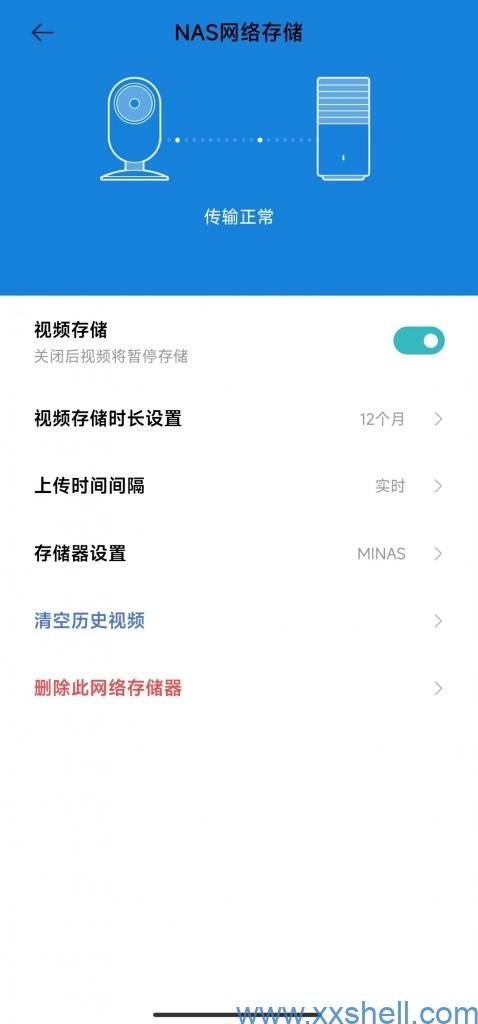

1、在存储设置中找到NAS网络存储，然后找到扫描到的SMB存储，添加存储输入用户名和密码。
