烽火AN5506系列OUN转普通交换机配置

[qgg_green]烽火设备在只有linux操作系统启动都时候,他的网口都是可以互通,我们只要阻止烽火ONU系统启动即可作为交换机来使用,配置过程不需要知道ONU的密码,假设密码不是EPON也是可以的。[/qgg_green]

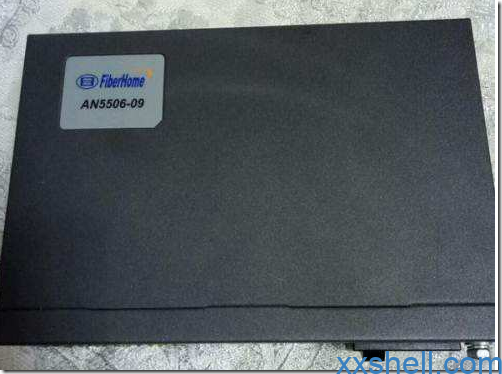

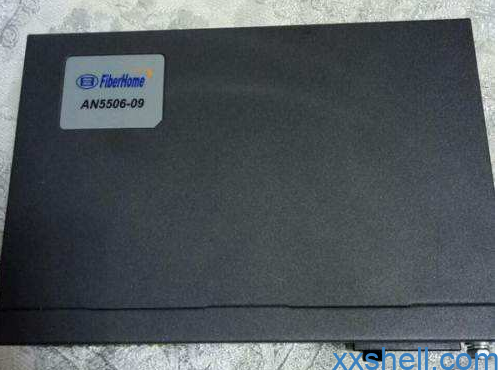

本次配置的设备为AN5506-09,这个系列的设备都可以这样配置,具体配置如下打印文件。



U-Boot 1.2.0-BL018 (Oct 18 2012 - 09:18:25, R147342)

Device Type : FiberHome AN5506-07-09-10 ver:0.08

(BL2345/8_A1 CPU Speed 449 MHz bus speed 56 MHz)
DRAM:  64 MB
Flash: 32 MB
CPLD:  CS1(0xB8600000)
In:    serial
Out:   serial
Err:   serial
Net:   CPLD_ver: 0.
HW_ver: 94.
Device: AN5506-09-A3.

config BCM5328X...
BCM53282, 8FE, Chip ID: 5.

Microcode version     6
Runner driver version 9
ETH on MAC 0
press 1 to stop autoboot:  0
## Booting image A at bfc80000 ...
Image Name:   Linux Kernel Image
Created:      2012-12-14   6:09:59 UTC
Image Type:   MIPS Linux Kernel Image (gzip compressed)
Data Size:    1111705 Bytes =  1.1 MB
Load Address: 80010000
Entry Point:  80245000
Verifying Checksum ... OK
Uncompressing Kernel Image ... OK

Starting kernel ...

BL2348 evaluation board (Jasmine)
CPU clock 449MHz
SYSTEM clock 56MHzLinux version 2.6.21.7-hrt130 (zheng@linux-6bzu) (gcc version 4.1.2 (Wind River Linux Sourcery G++ 4.1-84)) #34 Fri Dec 14 14:09:50 CST 2012
CPU revision is: 0001937c
BL2348 Evaluation board (Jasmine) setup
Determined physical RAM map:
memory: 04000000 @ 00000000 (usable)
User-defined physical RAM map:
memory: 03600000 @ 00000000 (usable)
Initrd not found or empty - disabling initrd
Built 1 zonelists.  Total pages: 13716
Kernel command line: root=/dev/mtdblock0 rw rootfstype=jffs2 console=ttyS0,9600n8 mem=54M
Primary instruction cache 16kB, physically tagged, 4-way, linesize 32 bytes.
Primary data cache 16kB, 4-way, linesize 32 bytes.
Synthesized TLB refill handler (20 instructions).
Synthesized TLB load handler fastpath (32 instructions).
Synthesized TLB store handler fastpath (32 instructions).
Synthesized TLB modify handler fastpath (31 instructions).
Cache parity protection disabled
PID hash table entries: 256 (order: 8, 1024 bytes)
Using 224.642 MHz high precision timer.
Dentry cache hash table entries: 8192 (order: 3, 32768 bytes)
Inode-cache hash table entries: 4096 (order: 2, 16384 bytes)
Memory: 52132k/55296k available (1764k kernel code, 3104k reserved, 491k data, 132k init, 0k highmem)
Mount-cache hash table entries: 512
NET: Registered protocol family 16
BLPCI driver initialized : vendor_id=0x5555 device_id=0x1556
version=0x380 type=0x2 revision_id=0x0 class_id=0x400000
registering PCI controller with io_map_base unset
Generic PHY: Registered new driver
NET: Registered protocol family 2
Time: MIPS clocksource has been installed.
IP route cache hash table entries: 1024 (order: 0, 4096 bytes)
TCP established hash table entries: 2048 (order: 2, 16384 bytes)
TCP bind hash table entries: 2048 (order: 1, 8192 bytes)
TCP: Hash tables configured (established 2048 bind 2048)
TCP reno registered
JFFS2 version 2.2. (NAND) (C) 2001-2006 Red Hat, Inc.
io scheduler noop registered (default)
Generic RTC Driver v1.07
Serial: 8250/16550 driver $Revision: 1.90 $ 1 ports, IRQ sharing disabled
ttyS0: autoconf (0x0000, 0xaff01000): type = 16550A
serial8250: ttyS0 at MMIO map 0xaff01000 mem 0xaff01000 (irq = 116) is a 16550A
RAMDISK driver initialized: 2 RAM disks of 16384K size 1024 blocksize
PPP generic driver version 2.4.2
PPP Deflate Compression module registered
PPP BSD Compression module registered
PPP MPPE Compression module registered
NET: Registered protocol family 24
Get FHSNOUI from Flash ...... 1 ... FHSNOUI set in boot prom 02
Get ethernet addr from Flash ...... 1 ... Done.
Created eth0
Microcode version     6
Runner driver version 9
Jasmine flash: Found 1 x16 devices at 0x0 in 16-bit bank
Amd/Fujitsu Extended Query Table at 0x0040
Jasmine flash: CFI does not contain boot bank location. Assuming top.
number of CFI chips: 1
cfi_cmdset_0002: Disabling erase-suspend-program due to code brokenness.
Creating 8 MTD partitions on "Jasmine flash":
0x00000000-0x00600000 : "root fs"
0x00600000-0x01100000 : "app fs A"
0x01100000-0x01c00000 : "app fs B"
0x01c00000-0x01c40000 : "u-boot"
0x01c40000-0x01c60000 : "boot env"
0x01c60000-0x01c80000 : "boot env redund"
0x01c80000-0x01e40000 : "kernel A"
0x01e40000-0x02000000 : "kernel B"
block2mtd: version $Revision: 1.30 $
IPv4 over IPv4 tunneling driver
TCP cubic registered
NET: Registered protocol family 1
NET: Registered protocol family 17
Bridge firewalling registered
VFS: Mounted root (jffs2 filesystem).
Freeing unused kernel memory: 132k freed

BROADLIGHT,2008 Linux ( based on Wind River Linux glibc_small (small) 2.0)
login[78]: root login on 'ttyS0'

BusyBox v1.4.1 (2009-05-27 11:07:31 CST) Built-in shell (ash)
Enter 'help' for a list of built-in commands.

Press Ctrl + C to stop auto setup
2                                        //按Ctrl+C键中断启动
root@(none):/root # mv /fh/bin/initialize.sh /fh/bin/initialize.sh_  //对initialize.sh启动文件进行重命名 阻止启动烽火ONU系统
root@(none):/root # reboot  //重启设备后即可 当做普通交换机使用
Bummer, cannot run '/sbin/swapoff': No such file or directory
The system is going down NOW !!
Sending SIGTERM to all processes.
Requesting system reboot.
Restarting system.
Broadlight Jasmine (BL2348 Evaluation) board will restart...
