飞奔AN5506-07 ONU改普通交换机

今天改了一个名字非常奇葩的ONU,“飞奔”,看命令像是OEM烽火的。

本次改交换机也是通过删除boot下的启动文件“img.bin”实现的,让它卡在boot下,实现OUN端口全通。

配置过程:

mpc8247 System Boot
Fiberhome Telecommunication Technologies Co. Ltd.

CPU: Motorola MPC8247
BOOT version: 2.0/2
Creation date: Nov  5 2009, 09:26:11

Press '1' key to stop auto-boot...     //在倒计时结束之前按1进入boot菜单
15
[Boot]:
[Boot]:
[Boot]: ?               //按?即可查看菜单信息

?                     - print this list
@                     - boot (load and go)
w                     - write image into flash
p                     - print boot params
c                     - change boot params
g                     - go to load image @ flash
d adrs[,n]            - display memory
M adrs                - modify memory
f adrs, nbytes, value - fill memory
e                     - delete a file in flash
v                     - print boot logo with version
n netif               - print network interface device address
m                     - set ethernet address
$dev(0,procnum)host:/file h=# e=# b=# g=# u=usr [pw=passwd] f=#
tn=targetname s=script o=other
Boot flags:
0x02  - load local system symbols
0x04  - don't autoboot
0x08  - quick autoboot (no countdown)
0x20  - disable login security
0x40  - use bootp to get boot parameters
0x80  - use tftp to get boot image
0x100 - use proxy arp

available boot devices:Enhanced Network Devices
motfcc0 motfcc1
[Boot]: [Boot]:
[Boot]: e               //按e选择要删除的文件
id  file               len             addr                 info
1   usr2.cfg      17             300009ec          User Conf2
2   boot.cfg      80            302b970c         Boot Conf
3   img.bin       1400347  303f052c          Application
4   usr1.cfg       2666        305470ac         User Conf1
5   mac.cfg       6              30547c5c          MAC Address
6   usr.cfg         1              30547ccc          User Conf

Please choose an id to delete: 3       //按3选择img.bin进行删除
delete ok!          //删除成功
[Boot]: e
id  file          len           addr             info
1   usr2.cfg      17            300009ec         User Conf2
2   boot.cfg      80            302b970c         Boot Conf
3   usr1.cfg      2666          305470ac         User Conf1
4   mac.cfg       6             30547c5c         MAC Address
5   usr.cfg       1             30547ccc         User Conf

//删除后重启交换机即可

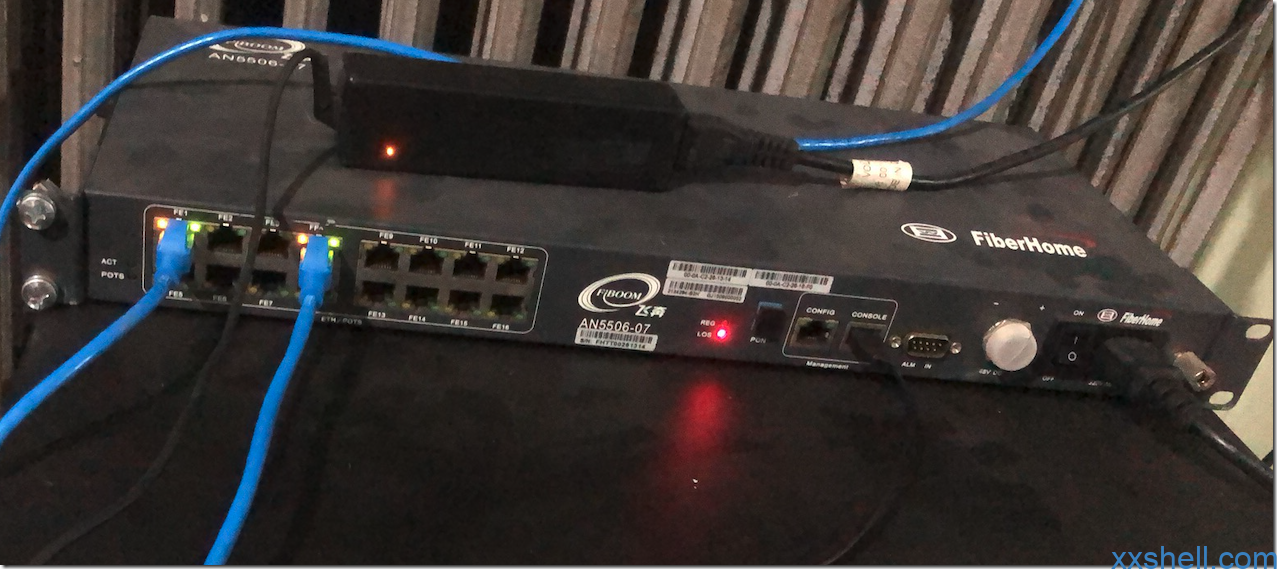

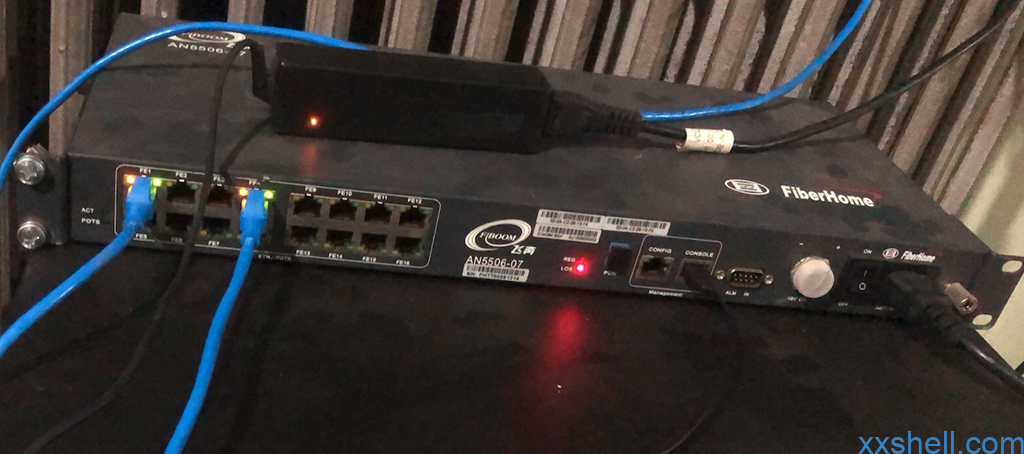

设备图片:
