EventLog Analyzer日志管理、审计、分析服务器部署教程(Linux版本)

一、EventLog Analyzer是什么?

1、EventLog Analyzer是一款集日志存储、管理、审计、分析功能与一身的系统软件,可以收集分析路由器、交换机、防火墙和IDS/IPS、服务器、企业运行的应用程序,如数据库和网络服务器等。

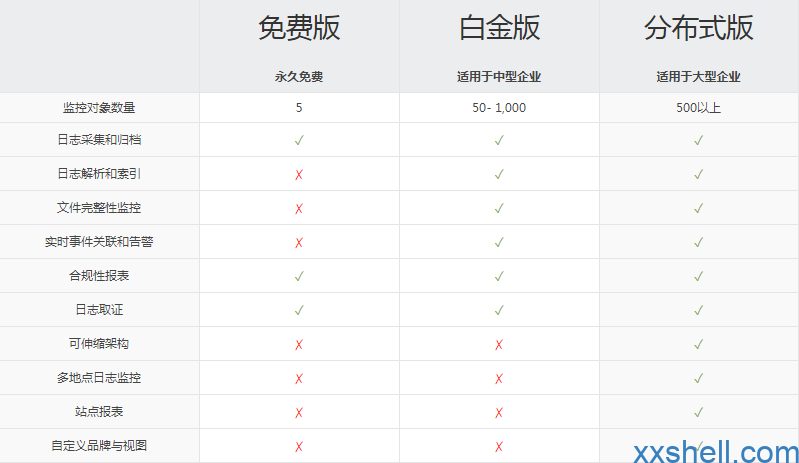

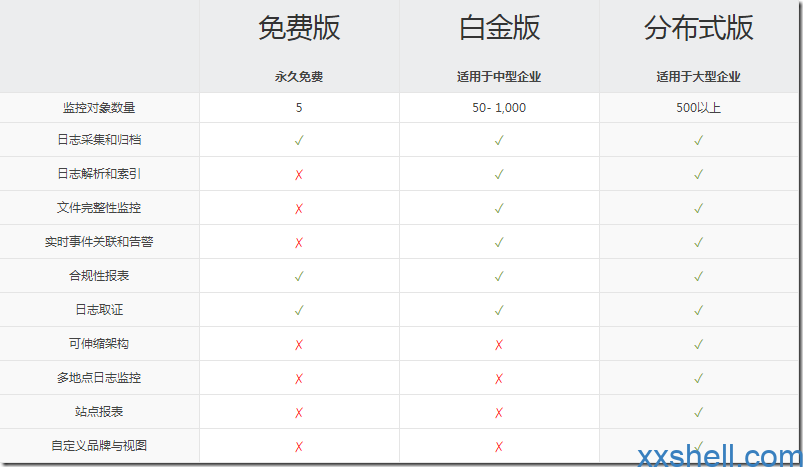

2、EventLog Analyzer支持5个日志源免费,版本信息如下图:

二、EventLog Analyzer下载

本站下载         官网下载

三、EventLog Analyzer软件安装

1、Linux安装,Centos、Redhat都可以,我这里使用7.X版本最小安装,安装过程就不赘述了,系统资源最低为2C/4G/40G。

2、将下载的bin文件通过SFTP上传到linux操作系统中。

3、关闭SELinux安全

setenforce 0
#临时关闭SElinux
sed -i "s/SELINUX=enforcing/SELINUX=disabled/" /etc/selinux/config
#永久关闭SElinux

或者手动修改配置文件:
vim /etc/selinux/config
SELINUX=enforcing     #将enforcing替换为disabled
SELINUX=disabled

4、关闭firewall防火墙

systemctl stop firewalld
systemctl disable firewalld

5、执行命令进行安装

[root@EventLog ~]# chmod +x ManageEngine_EventLogAnalyzer_64bit.bin #给安装添加执行权限
[root@EventLog ~]# ll
总用量 190056
-rw-------. 1 root root      1565 12月  2 11:33 anaconda-ks.cfg
-rwxr-xr-x. 1 root root 194612022 5月   4 18:30 ManageEngine_EventLogAnalyzer_64bit.bin
[root@EventLog ~]# ./ManageEngine_EventLogAnalyzer_64bit.bin   #执行安装程序
Preparing to install...
Extracting the JRE from the installer archive...
Unpacking the JRE...
Extracting the installation resources from the installer archive...
Configuring the installer for this system's environment...
./ManageEngine_EventLogAnalyzer_64bit.bin: line 2852: unzip: command not found
Invalid unzip command found

Launching installer...


Graphical installers are not supported by the VM. The console mode will be used instead...

===============================================================================
ManageEngine EventlogAnalyzer                    (created with InstallAnywhere)
-------------------------------------------------------------------------------

Preparing CONSOLE Mode Installation...




===============================================================================





===============================================================================
Introduction
------------

InstallAnywhere will guide you through the installation of ManageEngine
EventlogAnalyzer.

It is strongly recommended that you quit all programs before continuing with
this installation.

Respond to each prompt to proceed to the next step in the installation.  If
you want to change something on a previous step, type 'back'.

You may cancel this installation at any time by typing 'quit'.

PRESS <ENTER> TO CONTINUE:  ^H      #按ENTER键阅读协议



===============================================================================
License Agreement
-----------------

DO YOU ACCEPT THE TERMS OF THIS LICENSE AGREEMENT? (Y/N):
DO YOU ACCEPT THE TERMS OF THIS LICENSE AGREEMENT? (Y/N): y   #按Y同意协议

===============================================================================

Do you want to register for technical support?(Y/N) (Default: Y): n  #按N不选择支持服务,这样就不会让你输入支持信息

===============================================================================
Choose Install Folder
---------------------

Where would you like to install?

  Default Installation Folder: /opt/ManageEngine/EventLog

ENTER AN ABSOLUTE PATH, OR PRESS <ENTER> TO ACCEPT THE DEFAULT   #按ENTER保持默认路径
      :

===============================================================================

===============================================================================
Server Port Configuration
-------------------------

Server Port Configuration

Enter the EventLog Analyzer Web Server Port (Default: 8400):    #按回车保持默认端口号

===============================================================================
Install As Service
------------------

Enter requested information

    1- Install EventLog Analyzer as Service
  ->2- Do not install EventLog Analyzer as a service

ENTER A COMMA-SEPARATED LIST OF NUMBERS REPRESENTING THE DESIRED CHOICES, OR
   PRESS <ENTER> TO ACCEPT THE DEFAULT: 1        #这个地方一定要按1选择安装服务。

===============================================================================
Pre-Installation Summary
------------------------

Please Review the Following Before Continuing:

Product Name:
    ManageEngine EventlogAnalyzer

Install Folder:
    /opt/ManageEngine/EventLog

Disk Space Information (for Installation Target):
    Required:  476.33 MegaBytes
    Available: 77,166.52 MegaBytes

PRESS <ENTER> TO CONTINUE:     #按ENTER确认安装信息

===============================================================================
Ready To Install
----------------

InstallAnywhere is now ready to install ManageEngine EventlogAnalyzer onto
your system at the following location:

   /opt/ManageEngine/EventLog

PRESS <ENTER> TO INSTALL:    #按ENTER确认安装路径

===============================================================================
Installing...
-------------

 [==================|==================|==================|==================]
 [------------------|------------------|------------------|------------------]

===============================================================================
Installation Complete
---------------------
Congratulations. ManageEngine EventlogAnalyzer has been successfully installed
to:

   /opt/ManageEngine/EventLog

PRESS <ENTER> TO EXIT THE INSTALLER:    #到此安装就结束了;
[root@EventLog ~]#/etc/init.d/eventloganalyzer  start    #安装完成启动试试,如果不报错就可以

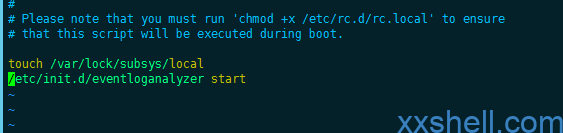

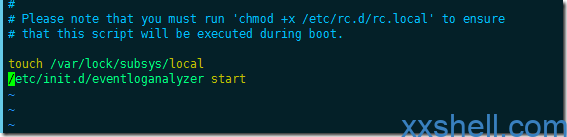

6、设置开机启动启动

chmod +x /etc/rc.d/rc.local    #给启动脚本添加执行权限;
vim /etc/rc.local
/etc/init.d/eventloganalyzer  start    #在最后一行增加本行,设置开机自动启动

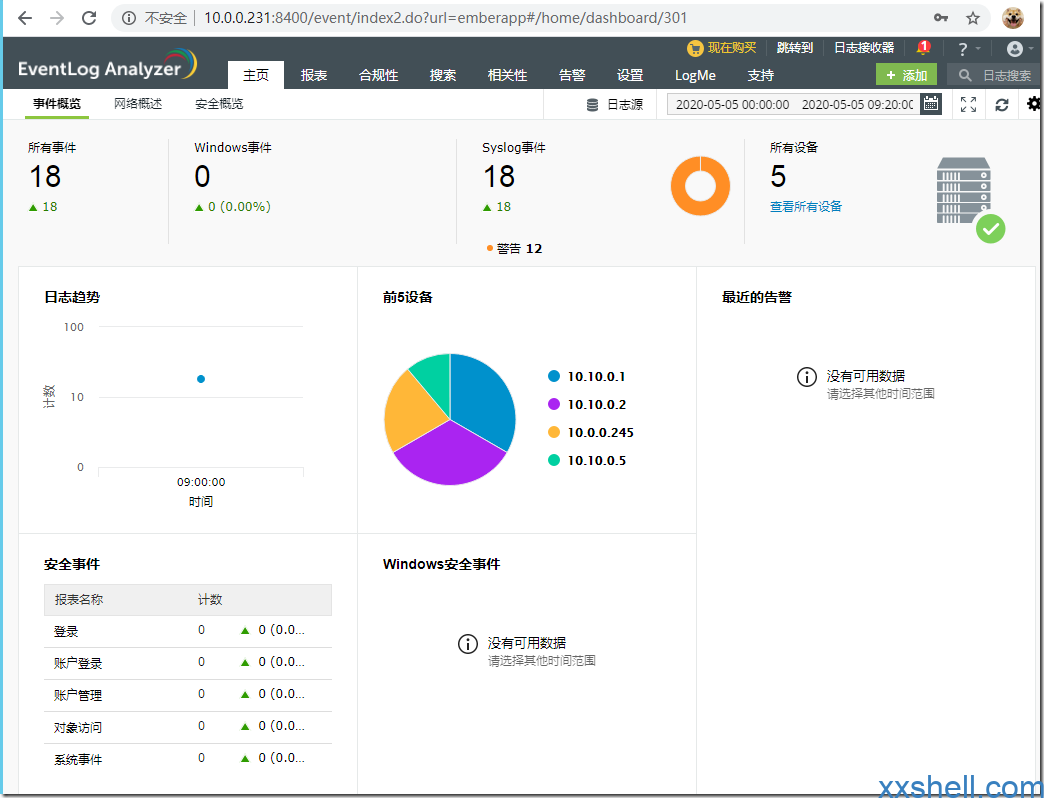

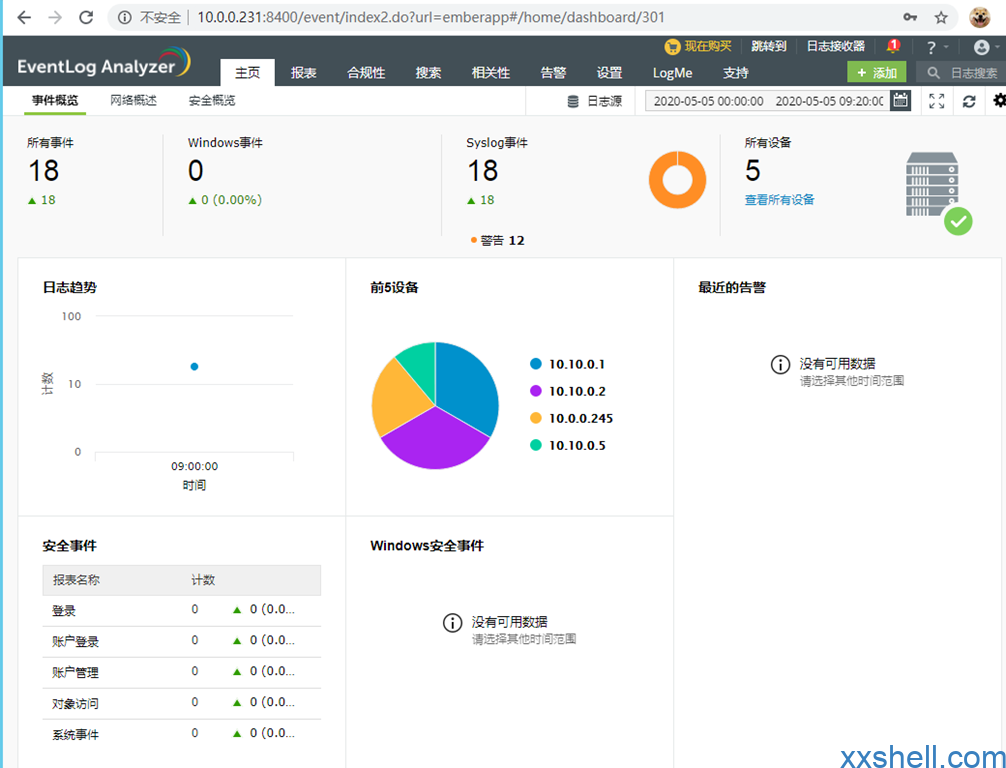

四、登录WEB页面

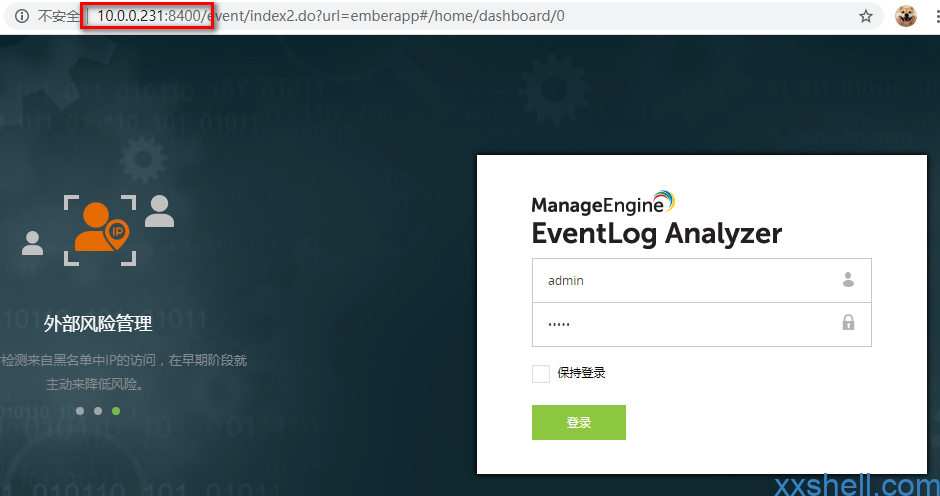

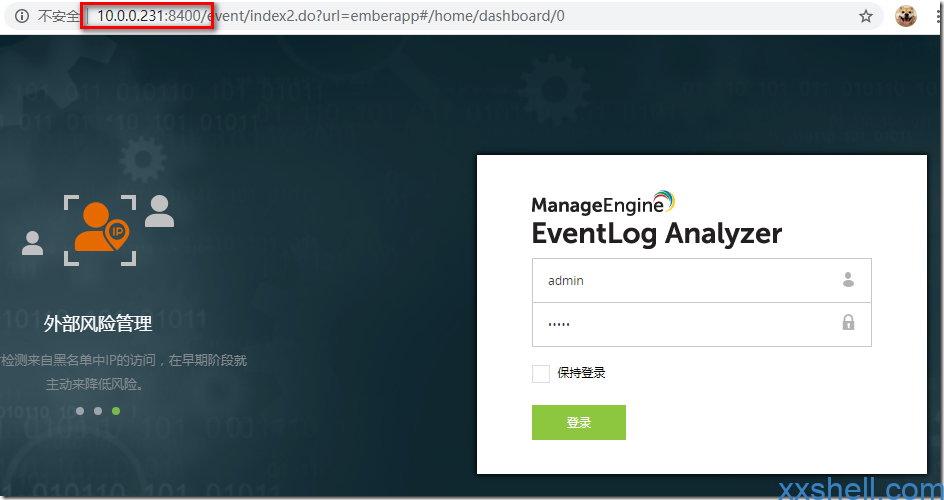

1、打开浏览器输入:http://IP:8400即可打开页面;

2、默认用户名密码都为admin
