H3C S6800交换机配置FCOE端口Zone

2019-10-27 分类：技术宅 阅读(4480) 评论(0)

[qgg_green]FC交换机配置端口zone具有灵活方便的特征，后期上线其他服务器，只需要插到一个Zone里面服务器就可以与存储设备互通。[/qgg_green]

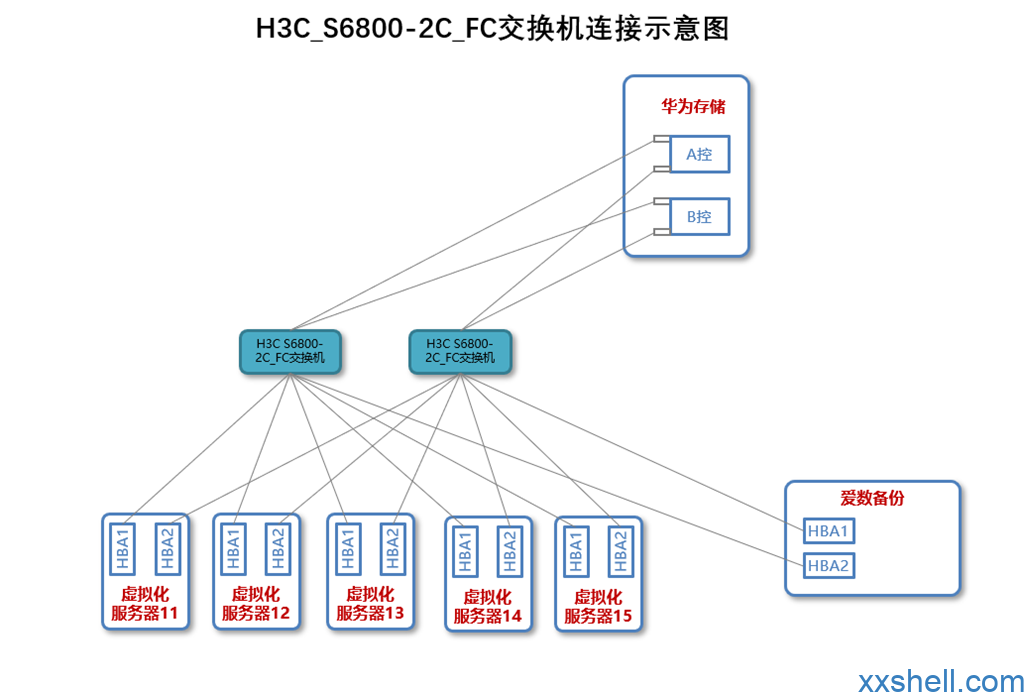

FC网络拓扑图：

文章目录 隐藏目录
1、导入数据中心授权
2、配置交换机工作模式为高级模式
3、配置FC相关配置
4、验证FC相关配置
5、设备配置

1、导入数据中心授权

华三交换机需要导入“数据中心授权”才可以启动FCOE功能，具体导入授权和其他设备导入授权一致这里就不做介绍了。

2、配置交换机工作模式为高级模式

<FC-S6800-1> system-view
[FC-S6800-1] system-working-mode advance    //切换工作模式为高级模式
[FC-S6800-1] save                           //保存设备配置
[FC-S6800-1] quit
<FC-S6800-1> reboot

注：缺省情况下，设备工作在标准模式，要使修改的工作模式生效，必须重启设备。

3、配置FC相关配置

<FC-S6800-1> system-view
[FC-S6800-1] fcoe-mode fcf
//缺省情况下，交换机工作在非FCoE模式，配置FC和FCoE功能时，必须先配置交换机的FCoE模式。
[FC-S6800-1] vsan 10
[FC-S6800-1-vsan10] domain-id 1 static          //配置域ID为1
[FC-S6800-1-vsan10] zone default-zone permit    //配置允许默认Zone内的成员互相访问

[FC-S6800-1] vlan 10
[FC-S6800-1-vlan10] fcoe enable vsan 10  //开启VLAN 100的FCoE功能，并将其与VSAN 100进行映射

[FC-S6800-2]interface range Ten-GigabitEthernet 1/2/1 to ten 1/2/24 //选择要切换成FC的接口
[FC-S6800-2-if-range]port-type fc   //将接口类型切换为FC模式

[FC-S6800-2]interface ran fc 1/1/1 to fc 1/1/24
[FC-S6800-2-if-range]fc mode f       //配置FC接口的模式为F模式
[FC-S6800-2-if-range]port access vsan 10   //将FC1/0/1以Access方式加入VSAN 100

4、验证FC相关配置

4.1查看接口配置

[FC-S6800-2]dis int brief
Brief information on FC interface(s):
Admin Mode: auto - auto; E - e port; F - f port; NP - n port proxy
Oper Mode: E - e port; F - f port; NP - n port proxy;
           TE - trunking e port; TF - trunking f port;
           TNP - trunking n port proxy
Interface    VSAN Admin Admin Oper Oper   Status SAN-Aggregation
                  Mode  Trunk Mode Speed
                        Mode
Fc1/1/1      10   F     auto  --   --     DOWN
Fc1/1/2      10   F     auto  --   --     DOWN
Fc1/1/3      10   F     auto  --   --     DOWN
Fc1/1/4      10   F     auto  --   --     DOWN
Fc1/1/5      10   F     auto  --   --     DOWN
Fc1/1/6      10   F     auto  --   --     DOWN
Fc1/1/7      10   F     auto  --   --     DOWN
Fc1/1/8      10   F     auto  --   --     DOWN
Fc1/1/9      10   F     auto  --   --     DOWN
Fc1/1/10     10   F     auto  --   --     DOWN
Fc1/1/11     10   F     auto  --   --     DOWN
Fc1/1/12     10   F     auto  --   --     DOWN
Fc1/1/13     10   F     auto  --   --     DOWN
Fc1/1/14     10   F     auto  --   --     DOWN
Fc1/1/15     10   F     auto  --   --     DOWN
Fc1/1/16     10   F     auto  --   --     DOWN
Fc1/1/17     10   F     auto  --   --     DOWN
Fc1/1/18     10   F     auto  --   --     DOWN
Fc1/1/19     10   F     auto  --   --     DOWN
Fc1/1/20     10   F     auto  --   --     DOWN
Fc1/1/21     10   F     auto  --   --     DOWN
Fc1/1/22     10   F     auto  --   --     DOWN
Fc1/1/23     10   F     auto  --   --     DOWN
Fc1/1/24     10   F     auto  --   --     DOWN
Fc1/2/1      10   F     auto  --   --     DOWN
Fc1/2/2      10   F     auto  --   --     DOWN
Fc1/2/3      10   F     auto  --   --     DOWN
Fc1/2/4      10   F     auto  --   --     DOWN
Fc1/2/5      10   F     auto  --   --     DOWN
Fc1/2/6      10   F     auto  --   --     DOWN
Fc1/2/7      10   F     auto  --   --     DOWN
Fc1/2/8      10   F     auto  --   --     DOWN
Fc1/2/9      10   F     auto  --   --     DOWN
Fc1/2/10     10   F     auto  --   --     DOWN
Fc1/2/11     10   F     auto  --   --     DOWN
Fc1/2/12     10   F     auto  --   --     DOWN
Fc1/2/13     10   F     auto  --   --     DOWN
Fc1/2/14     10   F     auto  --   --     DOWN
Fc1/2/15     10   F     auto  --   --     DOWN
Fc1/2/16     10   F     auto  --   --     DOWN
Fc1/2/17     10   F     auto  --   --     DOWN
Fc1/2/18     10   F     auto  --   --     DOWN
Fc1/2/19     10   F     auto  --   --     DOWN
Fc1/2/20     10   F     auto  --   --     DOWN
Fc1/2/21     10   F     auto  --   --     DOWN
Fc1/2/22     10   F     auto  --   --     DOWN
Fc1/2/23     10   F     auto  --   --     DOWN
Fc1/2/24     10   F     auto  --   --     DOWN

4.2查看设备接收到的wwwn信息

<FC-S6800-1>display fc login
Interface    VSAN FCID     Node WWN                Port WWN
Fc1/1/1      10   0x010000 20:00:00:10:9b:53:58:28 10:00:00:10:9b:53:58:28
Fc1/1/2      10   0x010001 20:00:00:10:9b:53:31:2a 10:00:00:10:9b:53:31:2a
Fc1/1/3      10   0x010002 20:00:00:10:9b:53:57:e0 10:00:00:10:9b:53:57:e0
Fc1/1/4      10   0x010003 20:00:00:10:9b:53:56:de 10:00:00:10:9b:53:56:de
Fc1/1/5      10   0x010004 20:00:00:10:9b:53:56:6c 10:00:00:10:9b:53:56:6c
Fc1/1/23     10   0x010005 20:00:00:24:ff:48:ae:54 21:00:00:24:ff:48:ae:54
Fc1/1/24     10   0x010006 21:00:48:d5:39:2e:81:65 20:13:48:d5:39:2e:81:65
Fc1/2/24     10   0x010007 21:00:48:d5:39:2e:81:65 20:03:48:d5:39:2e:81:65

5、设备配置

#
 version 7.1.070, Release 2612P01
#
 sysname FC-S6800-1
#
 irf mac-address persistent timer
 irf auto-update enable
 undo irf link-delay
 irf member 1 priority 1
#
 lldp global enable
#
 system-working-mode advance
 hardware-resource switch-mode 0
 hardware-resource routing-mode ipv6-64
 hardware-resource vxlan l2gw
 password-recovery enable
#
 fcoe-mode fcf
#
vsan 1
#
vsan 10
 domain-id 1 static
 wwn 10:00:00:10:9b:53:58:28 fcid 010000 dynamic
 wwn 10:00:00:10:9b:53:31:2a fcid 010001 dynamic
 wwn 10:00:00:10:9b:53:57:e0 fcid 010002 dynamic
 wwn 10:00:00:10:9b:53:56:de fcid 010003 dynamic
 wwn 10:00:00:10:9b:53:56:6c fcid 010004 dynamic
 wwn 21:00:00:24:ff:48:ae:54 fcid 010005 dynamic
 wwn 20:13:48:d5:39:2e:81:65 fcid 010006 dynamic
 wwn 20:03:48:d5:39:2e:81:65 fcid 010007 dynamic
 zone default-zone permit
#
vlan 1
#
vlan 10
 fcoe enable vsan 10
#
 stp global enable
#
interface NULL0
#
interface FortyGigE1/0/1
 port link-mode bridge
#
interface FortyGigE1/0/2
 port link-mode bridge
#
interface FortyGigE1/1/25
 port link-mode bridge
#
interface FortyGigE1/1/26
 port link-mode bridge
#
interface FortyGigE1/2/25
 port link-mode bridge
#
interface FortyGigE1/2/26
 port link-mode bridge
#
interface M-GigabitEthernet0/0/0
#
interface M-GigabitEthernet0/0/1
#
interface Fc1/1/1
 fc mode f
 port access vsan 10
#
interface Fc1/1/2
 fc mode f
 port access vsan 10
#
interface Fc1/1/3
 fc mode f
 port access vsan 10
#
interface Fc1/1/4
 fc mode f
 port access vsan 10
#
interface Fc1/1/5
 fc mode f
 port access vsan 10
#
interface Fc1/1/6
 fc mode f
 port access vsan 10
#
interface Fc1/1/7
 fc mode f
 port access vsan 10
#
interface Fc1/1/8
 fc mode f
 port access vsan 10
#
interface Fc1/1/9
 fc mode f
 port access vsan 10
#
interface Fc1/1/10
 fc mode f
 port access vsan 10
#
interface Fc1/1/11
 fc mode f
 port access vsan 10
#
interface Fc1/1/12
 fc mode f
 port access vsan 10
#
interface Fc1/1/13
 fc mode f
 port access vsan 10
#
interface Fc1/1/14
 fc mode f
 port access vsan 10
#
interface Fc1/1/15
 fc mode f
 port access vsan 10
#
interface Fc1/1/16
 fc mode f
 port access vsan 10
#
interface Fc1/1/17
 fc mode f
 port access vsan 10
#
interface Fc1/1/18
 fc mode f
 port access vsan 10
#
interface Fc1/1/19
 fc mode f
 port access vsan 10
#
interface Fc1/1/20
 fc mode f
 port access vsan 10
#
interface Fc1/1/21
 fc mode f
 port access vsan 10
#
interface Fc1/1/22
 fc mode f
 port access vsan 10
#
interface Fc1/1/23
 fc mode f
 port access vsan 10
#
interface Fc1/1/24
 fc mode f
 port access vsan 10
#
interface Fc1/2/1
 fc mode f
 port access vsan 10
#
interface Fc1/2/2
 fc mode f
 port access vsan 10
#
interface Fc1/2/3
 fc mode f
 port access vsan 10
#
interface Fc1/2/4
 fc mode f
 port access vsan 10
#
interface Fc1/2/5
 fc mode f
 port access vsan 10
#
interface Fc1/2/6
 fc mode f
 port access vsan 10
#
interface Fc1/2/7
 fc mode f
 port access vsan 10
#
interface Fc1/2/8
 fc mode f
 port access vsan 10
#
interface Fc1/2/9
 fc mode f
 port access vsan 10
#
interface Fc1/2/10
 fc mode f
 port access vsan 10
#
interface Fc1/2/11
 fc mode f
 port access vsan 10
#
interface Fc1/2/12
 fc mode f
 port access vsan 10
#
interface Fc1/2/13
 fc mode f
 port access vsan 10
#
interface Fc1/2/14
 fc mode f
 port access vsan 10
#
interface Fc1/2/15
 fc mode f
 port access vsan 10
#
interface Fc1/2/16
 fc mode f
 port access vsan 10
#
interface Fc1/2/17
 fc mode f
 port access vsan 10
#
interface Fc1/2/18
 fc mode f
 port access vsan 10
#
interface Fc1/2/19
 fc mode f
 port access vsan 10
#
interface Fc1/2/20
 fc mode f
 port access vsan 10
#
interface Fc1/2/21
 fc mode f
 port access vsan 10
#
interface Fc1/2/22
 fc mode f
 port access vsan 10
#
interface Fc1/2/23
 fc mode f
 port access vsan 10
#
interface Fc1/2/24
 fc mode f
 port access vsan 10
#
 scheduler logfile size 16
#
line class aux
 user-role network-admin
#
line class vty
 user-role network-operator
#
line aux 0
 user-role network-admin
#
line vty 0 63
 user-role network-operator
#
radius scheme system
 user-name-format without-domain
#
domain system
#
 domain default enable system
#
role name level-0
 description Predefined level-0 role
#
role name level-1
 description Predefined level-1 role
#
role name level-2
 description Predefined level-2 role
#
role name level-3
 description Predefined level-3 role
#
role name level-4
 description Predefined level-4 role
#
role name level-5
 description Predefined level-5 role
#
role name level-6
 description Predefined level-6 role
#
role name level-7
 description Predefined level-7 role
#
role name level-8
 description Predefined level-8 role
#
role name level-9
 description Predefined level-9 role
#
role name level-10
 description Predefined level-10 role
#
role name level-11
 description Predefined level-11 role
#
role name level-12
 description Predefined level-12 role
#
role name level-13
 description Predefined level-13 role
#
role name level-14
 description Predefined level-14 role
#
user-group system
#
return
